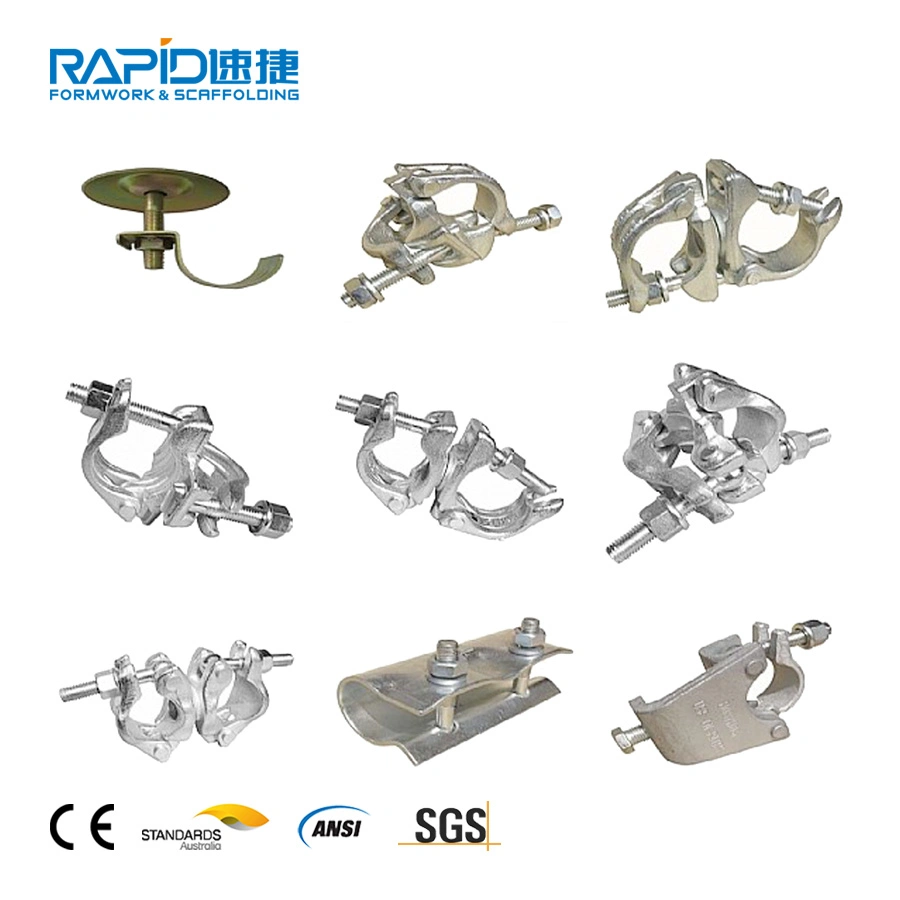

We have different types of couplers, British Style Coupler, German Style Coupler, US Style Coupler, Single Clamp and so on, all depends on your requirements. Components like steel plank, wooden plank and aluminum ladders work with tube and couplers to form important parts in the whole system.
| Tube Diameter: | 48.6 mm |
| Nut Size: | 17mm, 19mm, 21mm, 22mm |
| Material: | Q235 |
| T-Bolt: | 12mm or 14mm |
| Surface Treatment: | Yellow / White Zinc Plate or Hot Dip Galvanized |
| Item No. | Description | Weight(kgs) |
| PDC5 | Pressed Double Coupler - 5mm thickness | 0.85 |
| PSC5 | Pressed Swivel Coupler - 5mm thickness | 1.03 |
| PDC3 | Pressed Double Coupler - 3mm thickness | 0.65 |
| PSC3 | Pressed Swivel Coupler - 3mm thickness | 0.65 |
| PSLC | Pressed Sleeve Coupler - 5.0mm thickness | 1.25 |
| PPTG | Pressed Putlog | 0.65 |
| PLC | Limpet Coupler | 0.33 |
